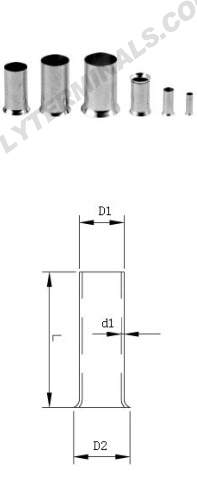

NON-INSULATED CORD-END TERMINALS 歐式裸端子
|
PART NO |
ITEM NO |
Wire Rang |
L |
Tolerance |
DIMENSIONS |
|||
| d1 |
oleranc |
D1 | D2 | ||||||
|
LY0023-0001 |
LN05006 |
0.50 | 6.0 | ±1.5 | 1.0 | ±0.14 | 1.3 | 1.8 | |
|
LY0023-0002 |
LN05008 |
8.0 | |||||||
|
LY0023-0003 |
LN05010 |
10.0 | |||||||
|
LY0023-0004 |
LN07506 |
0.75 | 6.0 | ±1.5 | 1.2 | ±0.14 | 1.5 | 2.3 | |
|
LY0023-0005 |
LN07508 |
8.0 | |||||||
|
LY0023-0006 |
LN07510 |
10.0 | |||||||
|
LY0023-0007 |
LN10006 |
1.00 | 6.0 | ±1.5 | 1.4 | ±0.14 | 1.7 | 2.5 | |
|
LY0023-0008 |
LN10008 |
8.0 | |||||||
|
LY0023-0009 |
LN10010 |
10.0 | |||||||
|
LY0023-0010 |
LN10012 |
12.0 | |||||||
|
LY0023-0011 |
LN15007 |
1.50 | 7.0 | ±1.5 | 1.7 | ±0.25 | 2.0 | 2.8 | |
|
LY0023-0012 |
LN15008 |
8.0 | |||||||
|
LY0023-0013 |
LN15010 |
10.0 | |||||||
|
LY0023-0014 |
LN15012 |
12.0 | |||||||
|
LY0023-0015 |
LN25007 |
2.50 | 7.0 | ±1.5 | 2.2 | ±0.25 | 2.5 | 3.4 | |
|
LY0023-0016 |
LN25008 |
8.0 | |||||||
|
LY0023-0017 |
LN25010 |
10.0 | |||||||
|
LY0023-0018 |
LN25012 |
12.0 | |||||||
|
LY0023-0019 |
LN40008 |
4.00 | 8.0 | ±1.5 | 2.8 | ±0.25 | 3.2 | 4.0 | |
|
LY0023-0020 |
LN40009 |
9.0 | |||||||
|
LY0023-0021 |
LN40010 |
10.0 | |||||||
|
LY0023-0022 |
LN40012 |
12.0 | |||||||
| ±2 | |||||||||
|
LY0023-0023 |
LN40015 |
15.0 | |||||||
|
LY0023-0024 |
LN40018 |
18.0 | |||||||
|
LY0023-0025 |
LN60010 |
6.00 | 10.0 | ±1.5 | 3.5 | ±0.3 | 3.9 | 4.7 | |
|
LY0023-0026 |
LN60012 |
12.0 | |||||||
|
LY0023-0027 |
LN60015 |
15.0 | ±2 | ||||||
|
LY0023-0028 |
LN60018 |
18.0 | |||||||
|
LY0023-0029 |
LN100012 |
10.00 | 12.0 | ±2 | 4.5 | ±0.3 | 4.9 | 5.8 | |
|
LY0023-0030 |
LN100015 |
15.0 | |||||||
|
LY0023-0031 |
LN100018 |
18.0 | |||||||
|
LY0023-0032 |
LN160012 |
16.00 | 12.0 | ±2 | 5.8 | ±0.3 | 6.2 | 7.5 | |
|
LY0023-0033 |
LN160015 |
15.0 | |||||||
|
LY0023-0034 |
LN160018 |
18.0 | |||||||
|
LY0023-0035 |
LN250015 |
25.00 | 15.0 | ±2 | 7.3 | ±0.4 | 7.7 | 9.5 | |
|
LY0023-0036 |
LN250016 |
16.0 | |||||||
|
LY0023-0037 |
LN250018 |
18.0 | |||||||
|
LY0023-0038 |
LN250022 |
22.0 | |||||||
|
LY0023-0039 |
LN350016 |
35.00 | 16.0 | ±2 | 8.3 | ±0.4 | 8.7 | 10.5 | |
|
LY0023-0040 |
LN350018 |
18.0 | |||||||
|
LY0023-0041 |
LN350020 |
20.0 | |||||||
|
LY0023-0042 |
LN350025 |
25.0 | |||||||
|
LY0023-0043 |
LN500018 |
50.00 | 18.0 | ±2 | 10.3 | ±0.4 | 10.9 | 13.0 | |
|
LY0023-0044 |
LN500020 |
20.0 | |||||||
|
LY0023-0045 |
LN500025 |
25.0 | |||||||
