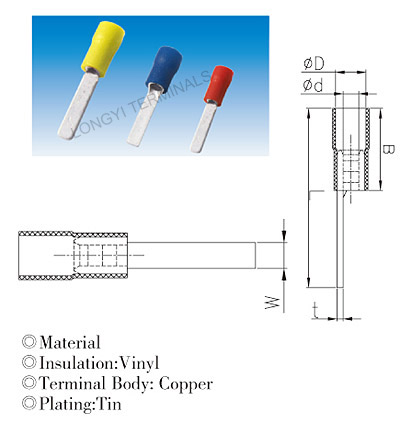

| PART NO | ITEM NO | 尺寸 | WIRE RANGE | ||||||||
| W | D | d | T | B | L | Single mm | Twine mm2 | AWG | Color | ||
| LY0029-1001 | PIN1.25F-10.0/3.0 | 3.0 | 4.0 | 1.7 | 0.75 | 10.4 | 20.4 | 0.57~1.44 | 0.25~1.65 | 22-16 |
 RED
|
| LY0029-1002 | PIN1.25F-13.0/3.0 | 3.0 | 4.0 | 1.7 | 0.75 | 10.4 | 23.4 | ||||
| LY0029-1003 | PIN1.25F-14.5/3.0 | 3.0 | 4.0 | 1.7 | 0.75 | 10.4 | 24.9 | ||||
| LY0029-1004 | PIN1.25F-18/3.0 | 3.0 | 4.0 | 1.7 | 0.75 | 10.4 | 28.4 | ||||
| LY0029-1005 | PIN1.25F-18/2.3 | 2.3 | 4.0 | 1.7 | 0.75 | 10.4 | 28.4 | ||||
| LY0029-1006 | PIN2F-8/3.0 | 3.0 | 4.6 | 2.3 | 0.75 | 10.4 | 18.4 | 1.14~1.82 | 1.04~2.63 | 16-14 |
 BLUE
|
| LY0029-1007 | PIN2F-13/3.0 | 3.0 | 4.6 | 2.3 | 0.75 | 10.4 | 23.4 | ||||
| LY0029-1008 | PIN2F-14/3.0 | 3.0 | 4.6 | 2.3 | 0.75 | 10.4 | 24.4 | ||||
| LY0029-1009 | PIN2F-18/2.3 | 2.3 | 4.6 | 2.3 | 0.75 | 10.4 | 28.4 | ||||
| LY0029-1010 | PIN2F-18/3.0 | 3.0 | 4.6 | 2.3 | 0.75 | 10.4 | 28.4 | ||||
| LY0029-1011 | PIN5.5F-14/3.0 | 3.0 | 6.9 | 3.5 | 1.0 | 13.5 | 27.5 | 1.82~2.89 | 2.63~2.64 | 12-10 |
 YELLOW
|
| LY0029-1012 | PIN5.5F-18/3.0 | 3.0 | 6.9 | 3.5 | 1.0 | 13.5 | 31.5 | ||||
| LY0029-1013 | PIN5.5F-18/2.3 | 2.3 | 6.9 | 3.5 | 1.0 | 13.5 | 31.5 | ||||
