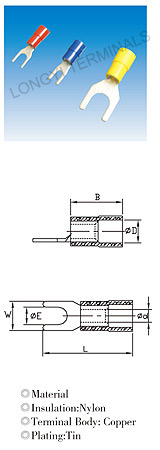

PART NO 2015-2018	ITEM NO	WIRE RANGE		DIMENSIONS
			AWG/MCM	mm2	ΦE	ΦD	Φd	W	B	L	COLOR
	LY0021-3001	NL1.25-3YS	22-16	0.25-1.65	3.7	4.3	1.7	5.7	11.3	22.7	RED
	LY0021-3002	NL1.25-3YSA			3.2	4.3	1.7	5.7	11.3	22.7
	LY0021-3003	NL1.25-3YW			3.7	4.3	1.7	6.2	11.3	22.7
	LY0021-3004	NL1.25-4YS			4.3	4.3	1.7	6.4	11.3	22.7
	LY0021-3005	NL1.25-4YW			4.3	4.3	1.7	7.2	11.3	22.7
	LY0021-3006	NL1.25-5Y			5.3	4.3	1.7	8.0	11.3	22.7
	LY0021-3007	NL1.25-6Y			6.7	4.3	1.7	10.7	11.3	22.7
	LY0021-3008	NL2-3YS	16-14	1.04-2.63	3.7	5.0	2.3	5.7	11.3	22.7	BLUE
	LY0021-3009	NL2-3YSA			3.2	5.0	2.3	5.7	11.3	22.7
	LY0021-3010	NL2-3YW			3.7	5.0	2.3	6.2	11.3	22.7
	LY0021-3011	NL2-4YS			4.3	5.0	2.3	6.4	11.3	22.7
	LY0021-3012	NL2-4YW			4.3	5.0	2.3	7.2	11.3	22.7
	LY0021-3013	NL2-5Y			5.3	5.0	2.3	8.0	11.3	22.7
	LY0021-3014	NL2-6Y			6.7	5.0	2.3	10.7	11.3	25.7
	LY0021-3015	NL5.5-3Y	12-10	4.60-6.64	3.7	6.6	3.5	8.2	14.1	27.1	YELLOW
	LY0021-3016	NL5.5-4Y			4.3	6.6	3.5	8.2	14.1	27.1
	LY0021-3017	NL5.5-5Y			5.3	6.6	3.5	9.0	14.1	27.1
	LY0021-3018	NL5.5-6Y			6.4	6.6	3.5	12.0	14.1	31.8
	LY0021-3019	NL8-5Y	8	8.64-10.52	5.3	8.0	4.5	9.0	16.0	30.9	RED
